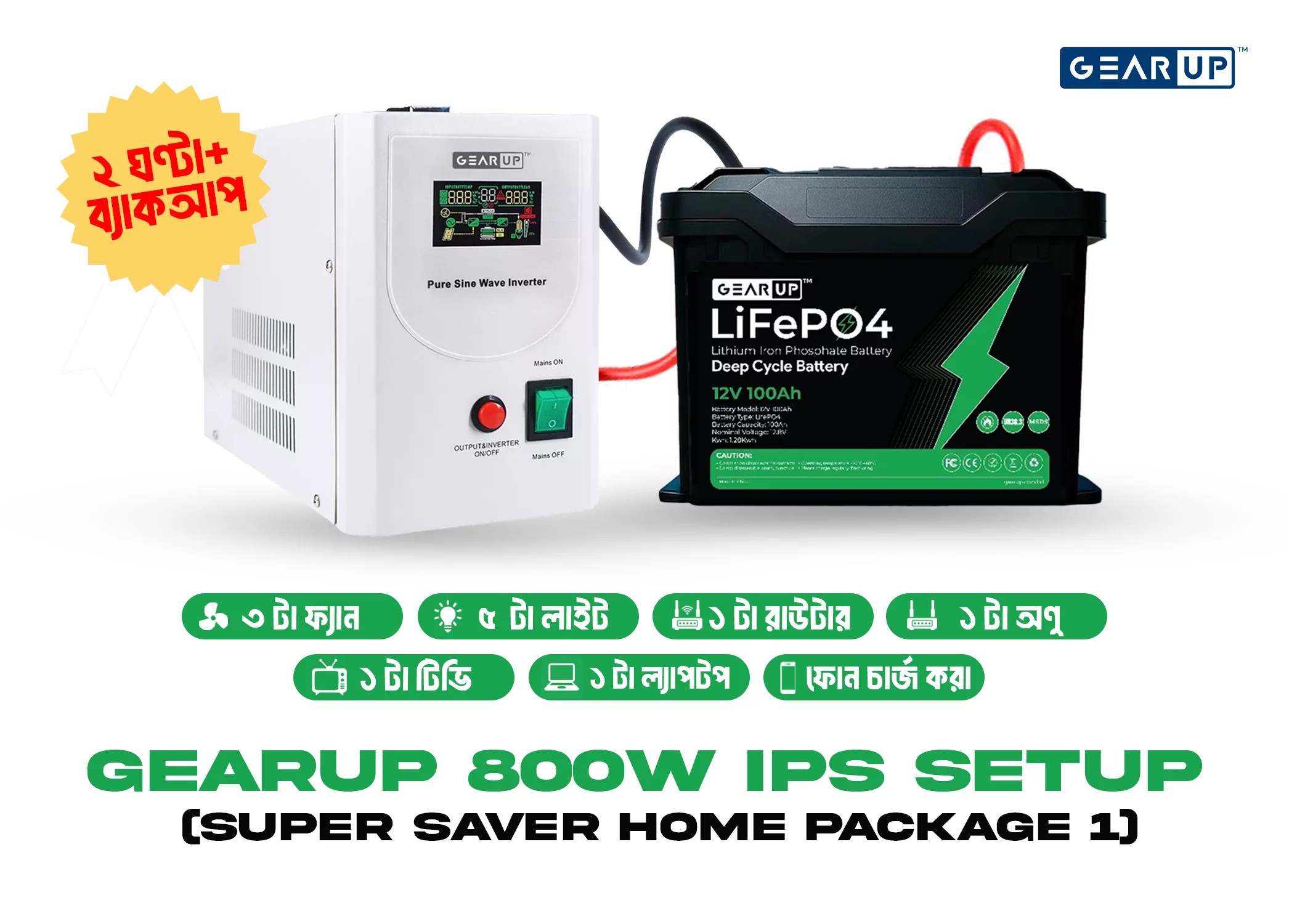

GearUP IPS setup (Super Saver home Package) - GearUP 800W Pure Sine Wave Inverter + GearUP 12V 100Ah LifePO4 Lithium Battery in GroupBuy

Backup Device:

• Inverter: 2 years (1 year parts + service, next 1 year free service but if any parts are needed, the price of the parts will have to be paid separately)
• Battery: 5-Years (2 Years Parts + Service and next 3 years only Service Warranty)
• অবশ্যই ২ তারের সেটআপ করতে হবে, ১ তারে সেটআপ করলে Inverter ক্ষতিগ্রস্ত হলে Warranty প্রোভাইড করা হবেনা।

• 3 Fan (240W)
• 5 Light (100W)
• Internet Onu (20W)
• Internet Router (20W)
• Led TV( 65W)
• Laptop (65W)
• Smartphone Charging

Backup Time: 2 Hours

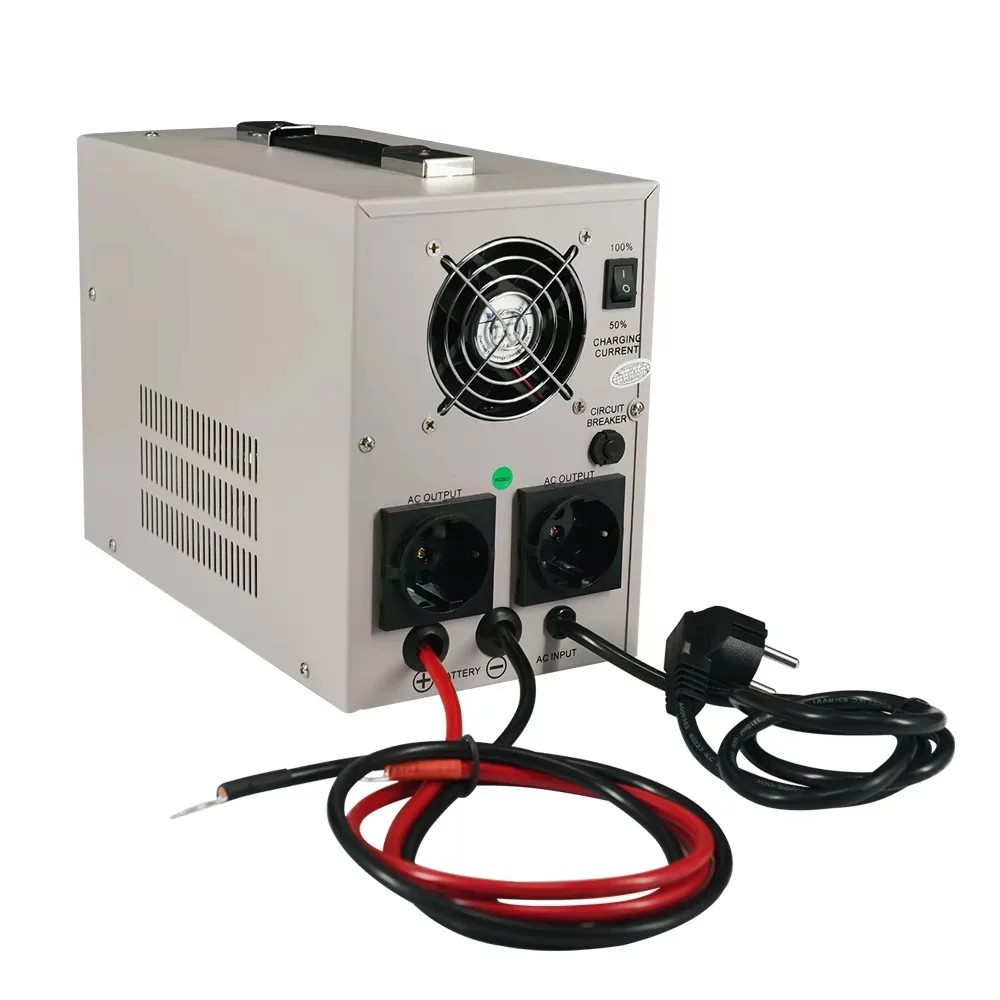

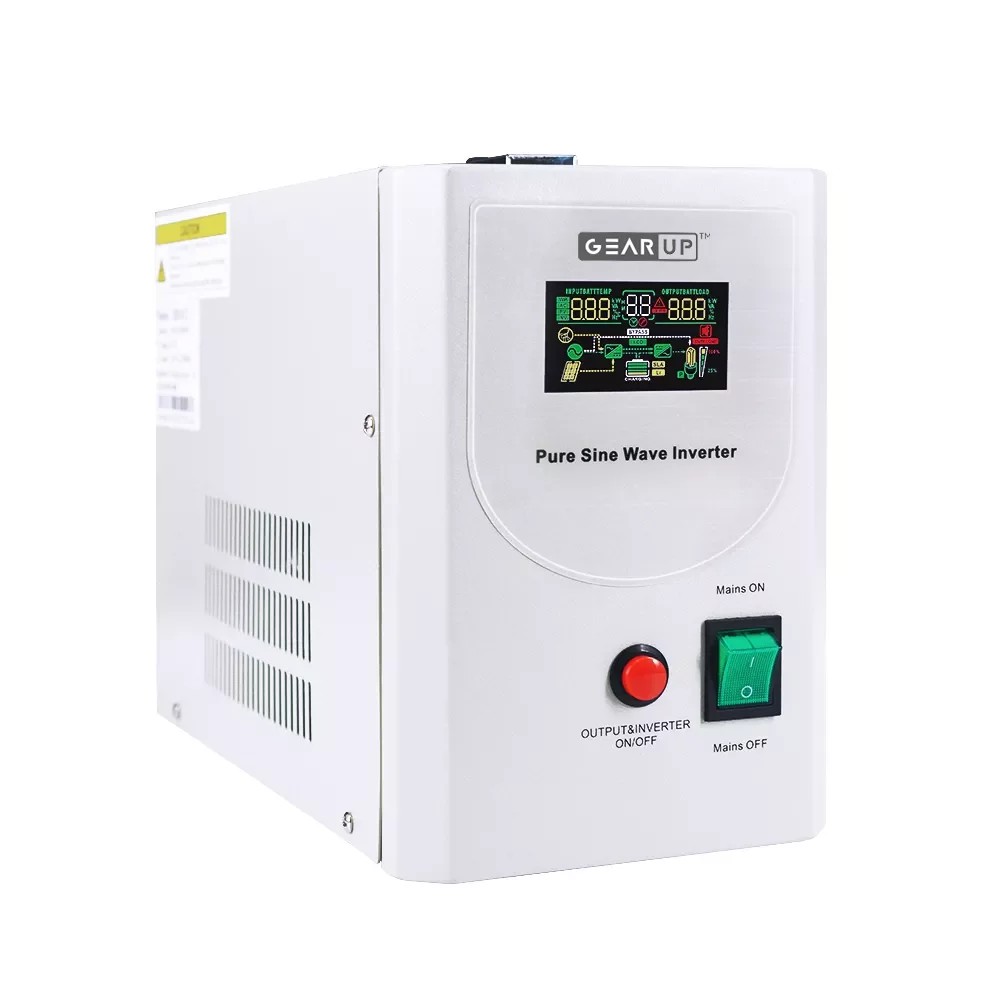

GearUP 800W Pure Sine Wave Inverter Information -

Key Features:

• Pure Sine Wave Inverter and High-performance Battery Charger
• DC Start & Automatic Self-Diagnostic Function
• High Efficiency Design “Power Saving Mode” & to Conserve Energy
• Auto-restart when AC is recovering.
• Smart battery charger design for optimized battery performance
• Auto Restart Voltage
•


Key Specifications:

• Product Type: DC to AC inverter and Battery Charger
• Input Voltage: 140-275VAC (220VAC)
• Maximum AC Charge Current: 18A
• Battery Voltage: 12V DC
• DC Charge Voltage: 12~16VDC(12V)
• Output Frequency: 50Hz
• Output Voltage: 220V
• Output Type: Single Phase
• Waveform: Pure Sine Wave
• Inverter Efficiency: 90%
• UPS Transfer Time: ≤10ms
• Transformer type: Toroidal
• Surge power: 3 times the rated power
• Standby Power: 11W
• Protection: overload/high temperature/output high voltage /output low voltage/battery low voltage short circuit/over-charge/over-discharge
• Display: LCD+LED Display
• System Language: English

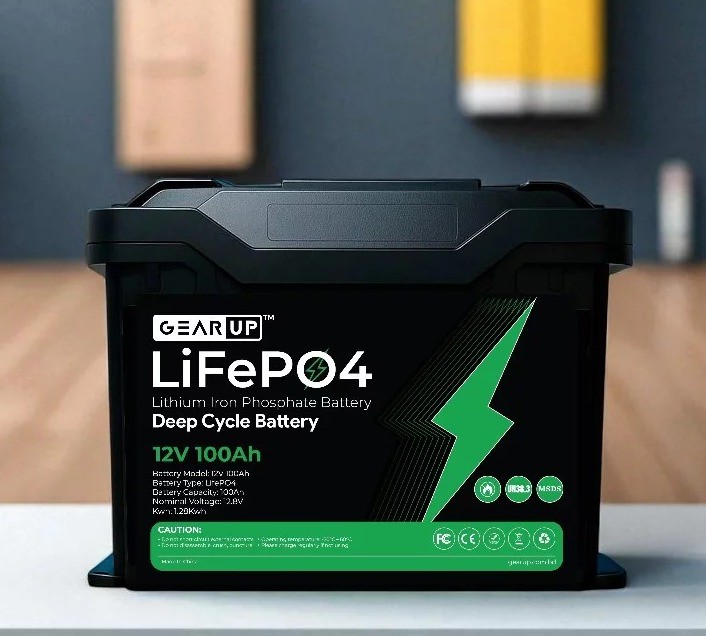

GearUP 12V, 100Ah Lithium Battery Information -

Key Features

1. High Cycle Life

• 6000+ Deep Cycles: The GearUP 12V 100Ah LiFePO4 battery is engineered to deliver over 6000 cycles at 80% Depth of Discharge (DOD), significantly outlasting traditional lead-acid batteries, which typically offer 200-500 cycles. This translates to a lifespan of up to 10 years or more, depending on usage.
•


2. Built-in 100A BMS

• Comprehensive Protection: The integrated 100A Battery Management System ensures safety and longevity by protecting against:
• Overcharging
• Over-discharging
• Overcurrent
• Short circuits
• High and low-temperature conditions
• Low-Temperature Cut-Off: The BMS includes a low-temperature protection feature, halting charging below 0°C (32°F) to prevent cell damage, resuming when temperatures rise above 5°C (41°F). This makes it ideal for cold environments like winter RV camping or marine applications.

3. Bluetooth Connectivity

• Real-Time Monitoring: Bluetooth 5.0 enables users to monitor battery status via a dedicated smartphone app. Parameters such as voltage, charge/discharge current, state of charge (SOC), and protection status can be tracked in real-time, ensuring optimal performance and safety.

4. Lightweight and Compact

• Weight: Approximately 10- 11 Kg, roughly one-third the weight of equivalent lead-acid batteries, making it easier to handle and install.

5. High Energy Density

• Capacity: 100Ah at 12.8V, delivering 1280Wh of energy.
• Efficiency: Offers higher energy density and faster charging (up to 5 times faster than lead-acid batteries), reaching 80% charge in about one hour with a suitable charger.

6. Versatile Applications

• Suitable for:
• RV camping
• Marine and trolling motors
• Solar energy storage
• Off-grid systems
• Home backup power
• Expandable: Supports up to 4 batteries in series (for 48V systems) and 15 in parallel (for increased capacity).

7. Safety and Certifications

• Grade A+ Cells: Utilizes A-grade LiFePO4 cells certified for safety (e.g., UL, CE, UN38.3).
• IP67 Waterproof: Both dust-tight and waterproof, capable of withstanding submersion in up to 1 meter of water for 30 minutes, making it suitable for harsh environments like marine or outdoor use.
• Non-Toxic: Free of heavy metals and rare earth elements, ensuring an environmentally friendly energy solution.

Performance Specifications

1. Nominal Voltage: 12.8V
2. Capacity: 100Ah (1280Wh)
3. Max Continuous Charge Current: 100A
4. Max Continuous Discharge Current: 100A
5. Peak Discharge Current: 200A (3-5 seconds)
6. High Cut Voltage: 14.6V
7. Low Cut Voltage: 10.0V
8. Recommended Charging Current: ≤50A
9. Operating Temperature:

• Discharge: -20°C to 60°C (-4°F to 140°F)
• Charge: 0°C to 45°C (32°F to 113°F)

1. Weight: ~ 10- 11 Kg
2. Dimensions: ~322*194*233mm

Advantages Over Lead-Acid Batteries

• Longevity: 10-15 times more cycles than lead-acid batteries.
• Weight: Approximately 1/3 the weight, reducing strain in mobile applications.
• Maintenance-Free: No watering or maintenance required, unlike lead-acid batteries.
• Faster Charging: Reaches full charge significantly quicker.
• Orientation Flexibility: Can be mounted in any direction without risk of leakage.

Use Cases

• RV and Camping: Power appliances, lights, and electronics for extended trips.
• Marine: Ideal for trolling motors and fish finders, with robust BMS protection against water and salt spray.
• Solar Systems: Efficient energy storage for off-grid solar setups, compatible with MPPT controllers.
• Backup Power: Reliable for home or emergency power systems.

Charging Options

• LiFePO4 Charger: Recommended for optimal performance (e.g., 14.6V 20A charger for ~5-hour full charge).
• Solar Panels: Compatible with solar setups using MPPT controllers.
• Generator: Supports charging via a DC generator for off-grid scenarios.

Warranty and Support

• Warranty: 5-Years (2 Years Parts + Service and next 3 years only Service Warranty).
• Customer Support: GearUP provides support for troubleshooting and warranty claims, often including detailed manuals and responsive service.
